BMW Built A Pre-Emissions Diesel Six That Shrugs Off Track Days And Tunes
Some engines become famous because they make huge power, but others become famous just because they refuse to die. Every so often, one manages both. Long before diesel engines needed a small chemistry lab hanging from the exhaust, one 3.0-liter straight-six found its way into fast sedans, heavy SUVs, luxury cars, tuned street builds, and even track cars. That compression ignition motor is now a legend.
Modern Diesel Engines Have More Ways To Become Expensive
A modern diesel has to do far more than compress air, inject fuel, and make a mountain of low-rpm torque. High-pressure common-rail systems operate at enormous fuel pressures. Variable-geometry and multi-stage turbo systems manage airflow across a wide rev range. Exhaust gas recirculation cuts combustion temperatures, and diesel particulate filters trap soot. Add to that selective catalytic reduction systems that inject urea into the exhaust to control nitrogen oxides, as well as sensors, pumps, actuators, control modules, and miles of plumbing, and the engine bay starts to resemble a very oily science project.
That also makes one distinction especially important: the durability of the actual engine and the durability of everything attached to it are not the same thing. A crankshaft can remain healthy while an injector gets tired. Pistons can look great while a turbo actuator stops cooperating. Even packaging can turn a routine repair into a major bill – BMW’s later N57 straight-six, for example, placed its timing drive at the flywheel end of the engine. If that chain needs major work, access becomes far more labor-intensive.
This Straight-Six Was Built To Handle More Than A Luxury Car Should Ever See
The engine at the center of this story came from a 3.0-liter straight-six diesel family that spent its life doing jobs beyond economical commuting. It powered executive sedans expected to sit at high speed on European highways. It hauled large luxury SUVs, and appeared in performance-oriented models that could embarrass thirstier gasoline cars from a rolling start. Smoothness mattered almost as much as torque.
Age has supplied the more interesting test. Owner reports regularly put these engines beyond 300,000 kilometers, while 200,000- and 250,000-mile examples remain common in enthusiast circles. One E90 owner reported more than 400,000 kilometers on the original engine, turbo, injectors, transmission, and torque converter. Another described running an example beyond 250,000 miles while it remained reliable and made more power than stock.
Meanwhile, tuners routinely push these engines far beyond factory output, and Darkside Developments, for example, built an M57-powered 330d specifically for track use. That car eventually suffered an oil-fed runaway that sent the engine to roughly 10,000 rpm at Silverstone. Apparently even German engineering has a safe word.
The BMW M57 Is The Diesel Six That Refuses To Wear Out

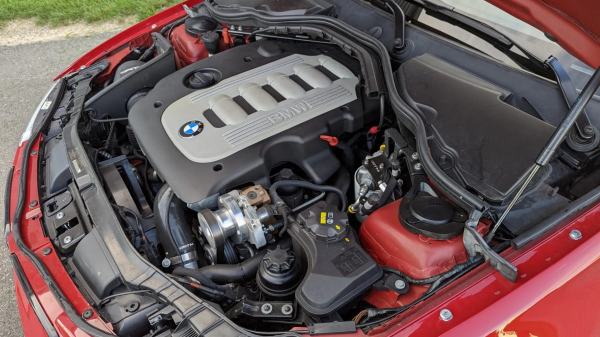

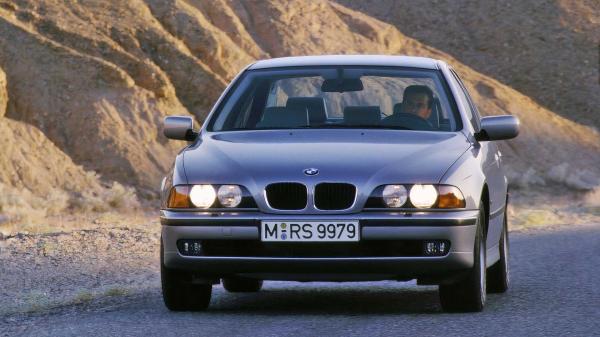

That engine is the BMW M57. BMW launched the common-rail diesel family in 1998, with the E39 530d serving as one of its first major showcases. Official numbers stand at 184 hp and 390 Nm, or about 288 lb-ft, from 2.9 liters. That hardly looks shocking now, but in 1998, it helped change what a diesel luxury car could feel like. The car could reach 138 mph while delivering inline-six smoothness and strong low-rpm torque. BMW later stretched the engine to 2,993 cc and developed it through several technical updates.
The early hardware explains much of its reputation. BMW used a gray cast-iron crankcase on the original M57, and the updated M57TU kept gray iron while trimming weight from the structure. The crankshaft used hardened bearing surfaces and radii, and the connecting rods used cracked construction and sputter-type big-end bearings. The pistons incorporated internal cooling features, and when BMW increased displacement and cylinder pressure for the M57TU, engineers thickened the connecting-rod stems, fitted higher-strength crankshaft-bearing-cap bolts, strengthened the thrust-bearing area, and added brass sleeves around the piston-pin bearings. The company raised output and reinforced the parts that had to absorb it.
BMW also kept the M57’s timing drive at the front of the engine. Factory repair information shows mechanics removing the vibration damper and front timing-case cover to reach the chains. While that may not seem important at a glance, it actually matters because the later N57 moved its timing hardware to the rear.

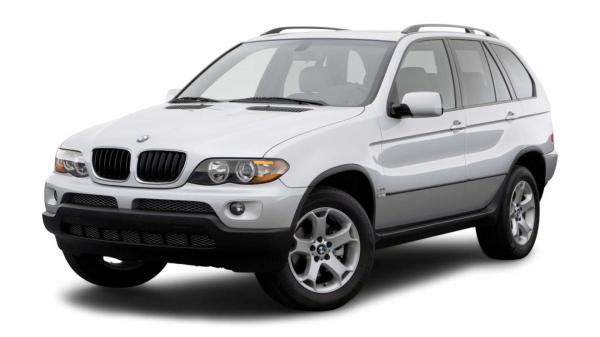

The engine then spread across BMW’s lineup: E39 and E60 530d models, several generations of the 330d, the 335d, E60 535d, X5 diesels, and 7 Series diesels all used versions of the family. Later M57TU2 variants switched to an aluminum block in some applications, so the whole family should not be described as one giant iron anvil. The early versions simply came closer than most.
Then BMW started asking the engine to behave like something much less sensible. In 2004, the 535d introduced two-stage turbocharging to a production passenger car, technology the firm noted had previously appeared in high-performance marine applications. The first version made 272 hp and 560 Nm, or 413 lb-ft. Later 535d models reached 286 hp and 580 Nm. North America’s E90 335d arrived with 265 hp and 425 lb-ft from the same basic family, and that was serious torque for a regular 3 Series in 2009.
The M57’s Weak Points Usually Aren’t The Parts That Make An Engine An Engine
The M57 has weak points, and one can destroy the engine if an owner ignores it. Swirl flaps sit inside the intake manifold on many versions to improve airflow and combustion under certain conditions. As the assemblies age, their hardware can wear or loosen – if a flap or part of its mechanism breaks free and enters a cylinder, a healthy piston and valve train suddenly meet a piece of metal BMW never intended to put there. Preventive removal or replacement therefore became common among enthusiasts, although owners still need to follow local emissions and inspection laws. The key point is that an intake component can kill an otherwise strong long block.
The rest of the usual M57 ownership list follows the same pattern. Turbochargers wear, especially on higher-output twin-turbo cars with large mileage or poor oil-service history. Injectors can become expensive as their correction values and leak-off worsen. Vacuum lines age, the crankshaft vibration damper deteriorates over time, and thermostats also matter more than their dull name suggests because a diesel that runs too cool can struggle with soot management and DPF regeneration on later versions. Cooling-system parts, glow-plug modules, boost hoses, breather components, seals, and gaskets all add work as the cars age.
At 20 years old, the M57’s biggest reliability problem may simply be that it still has to live inside a 20-year-old car.
The M57 May Have Arrived At The Perfect Moment In Diesel History
The M57’s timing explains why enthusiasts still care so much about it. It arrived late enough to get the good stuff – common-rail injection gave it finer fuel control and better refinement, variable-geometry turbocharging delivered strong low-speed response, and BMW eventually added two-stage boost and pushed a diesel 5 Series to 155 mph. At the same time, much of the engine still reflected an older approach to durability. Early blocks used iron, reinforced rods, bearings, pistons, and more. The timing gear remained at the front, and early emissions hardware stayed relatively simple. Later diesels had to chase stricter emissions targets, lower weight, tighter packaging, lower fuel use, and greater specific output at the same time. Those goals produced some excellent engines, but they made the M57’s mix of strength and serviceability harder to repeat.
That combination keeps the M57 relevant long after the newest examples became old cars. A well-maintained one can still make sense as a huge-mileage daily driver. A tuned one can deliver the kind of midrange torque that makes highway passing feel almost rude. Track builders have proved that the engine can live far outside its original executive-car brief when cooling and calibration keep up. And that may be the clearest compliment an old engine can receive – when the original BMW reaches the end of its useful life, enthusiasts sometimes pull out the diesel and give it another car. The M57’s retirement plan, apparently, is more work.
Source: BMW
