Why Volkswagen’s VR Engines Are Awesome
Volkswagen has been known over the decades for building incredible engines. That stems from how VW’s former boss Ferdinand Piech placed a huge importance on good and innovative engine design. A result of that focus on innovating with engine design is the VR engine family. These engines were a backbone of the Volkswagen Group’s engine offerings for a long time. So long, in fact, that you might have forgotten that they were actually one of the most interesting (and awesome) engine designs ever.
The VR Engine Is One Of Volkswagen’s Biggest Legacies As An Engine Builder
 30 autotech Engine Type |
Displacement |
Power |
 36 autotech Torque |
Years Produced |
|
VR5 |
2.3 liters |
148-168 hp |
154-162 lb-ft |
1997-2000 (10-valve), 2000-2006 (20-valve) |
|
VR6 |
2.8-3.6 liters |
172-300 hp |
177-266 lb-ft |
1991-2002 (12-valve), 1999-2024 (24-valve) |
Out of all of Volkswagen‘s great and quirky engine designs, there aren’t many that are better than the VR family. Not all of the quirkier Volkswagen designs worked well, or lasted long. But the VR designs (and the VR6 in particular) lasted for a long time. The first VR family engine was the 2.8-liter 12-valve version of the VR6, first appearing in 1991 and being put into the B3 Volkswagen Passat and the Volkswagen Corrado. The VR6 further developed over the years, going up to as much as 3.2 liters in size. A 24-valve version also appeared in 1999, with the original 12-valve version being produced alongside it until 2002. A 2.3-liter VR5 version also appeared in 1997, scaling the design down to 5 cylinders. This originally had 10 valves, but then increased to 20 valves in 2000.
Not only did the VR engine family last for ages, but it was also the engine of choice for some of the best Volkswagen models ever. That includes several variants of the Volkswagen Golf across multiple generations. The Mark 3 Golf VR6 was the first to get one (the 2.8-liter VR6), becoming a seriously great sleeper car and an enthusiast favorite. The VR6 carried on into the Mark 4 in the GTI VR6 version. The Mark 4 and Mark 5 versions of the Golf R32 also use a 3.2-liter version of the VR6, and these are both cars VW enthusiasts really want today. On the Audi side of things, the Audi TT 3.2 Quattro got it too.
Along with these enthusiast-favorite Volkswagens, there were a few non-VW Group cars that got VR engines. The 2.8-liter version of the VR6 showed up in the first generation of the Ford Galaxy, which shared a platform and many parts with the Volkswagen Sharan. The V 280 variant of the W638 Mercedes-Benz Vito also used the 2.8-liter VR6.
How Does The VR Engine Work?
What makes the VR engines so cool? It’s entirely in how they take a radical approach to the idea of building a V-configuration engine. VR engines have the V at an extremely narrow angle—15 degrees for the VR5, and 10.5 to 15 degrees for the VR6. This extremely narrow V angle allows both banks of cylinders to use the same cylinder head. To make the cylinders all fit into that single cylinder head, they were arranged in a staggered V formation. As part of staggering the cylinders, they have angled bores and offset crankpins. This design choice of all the cylinders sharing a single cylinder head means that both the 12-valve and 24-valve versions of the VR6 only need two camshafts, as opposed to up to four for a conventional V6 engine.
The Advantages Of The VR Design
The VR family of engines might have an odd design. But, that odd design does come with plenty of advantages over more conventional engines. One of those advantages is something that allowed the Volkswagen Group to create an entire new line of engines based upon expanding the VR architecture.
It’s More Compact Than A Traditional V-Format Engine
The biggest benefit that the VR engines have over a conventional V format engine is that, thanks to that narrow V angle and all the cylinders sharing a single cylinder head, it made them very compact. This allowed them to fit in the small engine bays that front-wheel drive cars with transverse-mounted 4-cylinder engines have. That’s the main reason why cars like the Volkswagen Golf were able to have the VR6 engine — this engine was pretty much the only V formation option that could have fit inside its small engine bay.
It’s Smoother Than A Traditional V-Format Engine
One of the (perhaps surprising) benefits that comes out of the cylinders being angled to fit them all into a single cylinder head is that it makes the engine run smoother. That’s especially noticeable when you compare the VR6 to a conventional V6. The angled bores and offset crankpins have the effect of making the engine fire evenly. This gives you a driving experience that’s more like an inline-6 or a V12, with silky smoothness and a unique engine noise that enthusiasts absolutely love.
The Valvetrain Is A Lot Simpler
Because all the cylinders share a single cylinder head and two camshafts, the valvetrain is a lot simpler than what you’d need for a conventional V format engine. That’s a huge win for reducing mechanical complexity. Because there are fewer moving parts in the top end of the engine, there’s simply less to go wrong. It also helps make some aspects of manufacturing the engine a bit simpler.
It Has The Capability To Be A Modular Design
Thanks to the incredibly compact packaging of the VR engines, there was a lot of possibility to turn the VR architecture into a modular design. Volkswagen realized this fairly early on, and used it to create the craziest family of engines that the Volkswagen Group has ever produced. By fusing two 3-liter VR6 blocks together, Volkswagen could create a 6-liter W12. This made something as smooth and powerful as a V12, but in a package that’s much more compact. It first appeared in the Nardo W12 prototype supercar, but it became much better known for being the engine of choice for the Bentley Continental GT and Flying Spur.

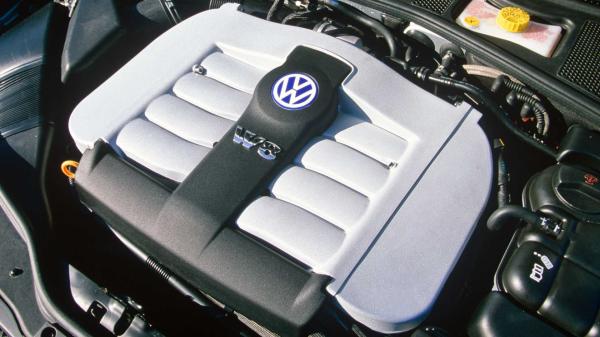

Volkswagen didn’t stop there, either. It also experimented with fusing two 2-liter 4-cylinder VR4 (a VR4 engine was never produced by Volkswagen) blocks together to create a 4-liter W8, powering the Passat W8 (the only W8 production car ever). Volkswagen even experimented with fusing two VR5s together to make a W10, an engine that was prototyped and put into a modified BMW M5.
The Disadvantages Of The VR Design

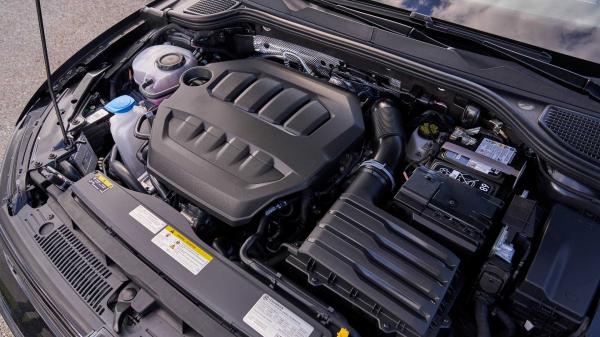

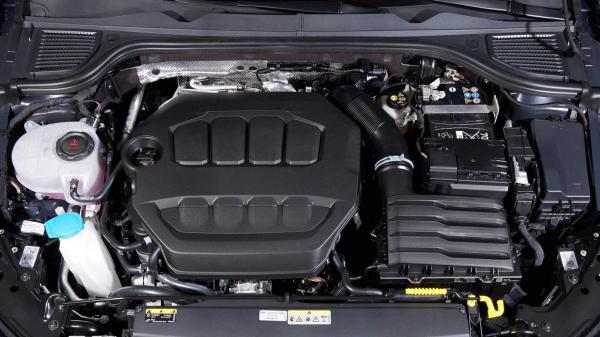

All engine designs have their disadvantages, as well as their advantages. That’s definitely true of the VR family. While they have so many great qualities, there are absolutely some issues with the quirky VR design. Interestingly, a couple of those issues aren’t because of these engines having major flaws. Rather, quite simply, the design didn’t keep up with the times. That becomes especially clear when you compare them to the more modern turbocharged inline-4 engines you’ll find in cars like the Volkswagen Golf R, the aforementioned VR6-powered Golf R32’s replacement.
A VR Engine Is Heavier And Bulkier Than A Modern Turbocharged Engine
The VR engines might have been groundbreaking back in the 1990s, due to their incredibly compact packaging. But as times have moved on and engine technology has gotten better, the smaller turbocharged inline-4s have now become as powerful as even the most powerful versions of the VR6. They’ve managed to achieve that while being smaller and lighter than the VR engines, too. That doesn’t just make them better-packaged than the VR engines. It also means that these newer engines give the cars they’re in better handling, as they don’t make the front end as heavy.
A More Modern Turbocharged Engine Is More Efficient
As well as being lighter and better-packaged than the VR engines, modern turbocharged inline-4s are also more efficient. They can produce the same power as the VR engines while having better fuel economy and emissions. In today’s world of increasing electrification and ever-tightening emissions regulations, that’s so important.
VR Engines Had Challenges With Heat Management
While the idea of making the VR engines narrow-angle Vs with all the cylinders sharing the same cylinder head may have been amazing for compact packaging, it made the design an absolute nightmare when it came to cooling. The VR engines are known to develop hot spots in certain areas, due to how narrow the block is. The narrow block also made it difficult to package cooling components in properly. Add both of those things up, and you get an engine with serious heat management issues that could cause chaos at any moment if those issues aren’t controlled properly. That’s something that more conventional modern turbocharged engines don’t have to deal with.
The VR Engines Required A More Complex Manufacturing Process
Although the simplified top end did help to make some aspects of the design and manufacture of the VR engines simpler, the angled bores and offset crankpins made other aspects of that more complicated. Because the vast majority of engine designs don’t require either of those elements, specialist production and machining techniques had to be developed to mass-produce the VR engines. Adding any kind of specialist processes makes manufacturing more complex and more expensive. When you compare this to how modern turbo 4s don’t need these kinds of specialist processes, it makes the VR engines look a lot less appealing to an automaker in 2026 than they did in 1996 or 2006.
The VR Engine’s Architecture Quietly Survived For A Couple More Years In Bugatti’s W16
After decades of service, the VR family of engines was finally put to rest when production of the VR6 ended in 2024. The W12 was also put to bed in the same year, ending the most successful part of the design’s W lineage too. But, that didn’t mean its architecture had completely disappeared. Bugatti’s W16 managed to carry on until 2026.
Why did the W16 survive? Well, Bugatti decided to use it as the engine for a few coachbuilt specials built under the Solitaire program. These were the Brouillard, the F.K.P. Hommage, and the Destrier. The Brouillard and the F.K.P. Hommage are based on the Bugatti Mistral, while the Destrier is based on the Bugatti Bolide. As the final cars to use an engine that was developed from the VR architecture, these ultra-exclusive, one-off specials now have a bit of extra historical weight behind them.
Sources: Audi, Bugatti, Ford, Mercedes-Benz, Volkswagen
