Volvo’s 300-HP AWD Stick-Shift Wagon Is Built For Track Days, Not Grocery Runs
Most grocery-getters don’t embarrass Corvettes in a slalom. A surviving period-test quote records this roughly 3,700-pound Swedish wagon at a 65.9-mph slalom, enough to better contemporary non-Z06 Corvettes. That mix of wagon practicality and sports-car pace is why Volvo performance cars still fascinate enthusiasts and why once-dismissed machines can become modern collectibles. This one is a living, bleeding forever car used for family duty, long trips, and frequent track days—not parked under a cover.
This 300-HP AWD Wagon Was Built For Real Track Days
The factory recipe was slightly unhinged for something with a big cargo area and a grocery-bag holder. A turbocharged 2.5-liter inline-five made 300 horsepower, while the manual got the full 295 lb-ft of torque and an electronically limited 155-mph top speed. Volvo’s factory figures put the manual wagon at 0–62 mph in 5.9 seconds, and the company’s original U.S. press material documented the rest of the R-car hardware. Some period figures dipped to 5.6 seconds to 60 mph. Close enough to keep bench racers busy. The six-speed had short throws, Haldex all-wheel drive handled traction, and the “spaceball” shifter looked like something from the Swedish branch of NASA.
The transmission choice mattered more than those few tenths. Early five-speed Geartronic cars were limited to 350 Nm, roughly 258 lb-ft, while the manual used the full 400 Nm, or 295 lb-ft. A 2006 specification sheet records the stronger six-speed Geartronic that finally gave automatic cars the full engine output. Until then, the stick was the full-fat version. Three pedals, 300 horses, AWD, wagon body. Volvo was clearly having a moment. And with manufacturers still trying to revive driver-focused cars today, the formula hasn’t exactly gone stale.

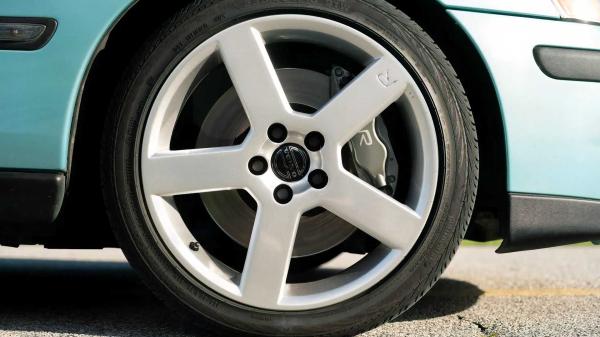

The drivetrain was only half the fun. Volvo added four-piston aluminum Brembo calipers around 330mm vented discs at all four corners, speed-sensitive steering, and Four-C rather than simply adding boost and leaving the tires to negotiate the consequences. Volvo’s chassis release shows how serious that hardware was. Track sessions turn speed into brake heat repeatedly, and 3,700-plus pounds gives the brakes plenty to deal with. More importantly, the package was complete from the factory: haul cargo, drive through bad weather with AWD, then arrive at a circuit with the power, brakes, damping, and gearbox already there. Volvo even offered a grocery-bag holder. Subtle.
But Can Four-C Make A 3,700-LB Wagon Feel Track-Ready?
Four-C is where the early-2000s weirdness becomes serious engineering. Short for Continuously Controlled Chassis Concept, it was developed with Öhlins Racing and Monroe and offered Comfort, Sport, and Advanced modes. Volvo’s description says the dampers received updated information 500 times every second and were continuously adjusted as the car moved. The company’s original Four-C release explains how sensor and vehicle-network data helped the system react to steering, acceleration, braking, and changing road conditions. Under hard braking, it could even prepare the dampers for the nose dive that was coming. Clever now. Borderline witchcraft in the early 2000s.
It still couldn’t repeal physics. Roughly 3,700 pounds loads the outside tires in a corner, works the brakes harder, and reminds you this wagon has room for a family holiday. Then there’s the “school bus” turning-radius reputation. But Four-C helped control body movement, the Brembos scrubbed off speed, and Haldex AWD helped put the turbo five’s torque down. The system didn’t make it light; it gave a heavy wagon better tools. Modern performance cars still use the same basic idea—adaptive damping to give a heavy car better body control—and Volvo’s Four-C technical material shows how early this wagon was doing it.
The real advantage was flexibility. A fixed track setup can make the trip to the circuit miserable, while a soft road setup can go vague when the pace rises. Four-C let the wagon cover both jobs without sending its owner underneath the car with a set of wrenches. The mode range suited a car built for two very different lives, even if no damper setting could disguise its size or weight. That 65.9-mph slalom figure makes more sense once the hardware is clear. This wasn’t a wagon pretending to be a lightweight sports car. It was a big wagon engineered to behave much better than its size suggested.
The Essential 4T5 Swap Fixes The 2004 Volvo V70R’s Weak Link

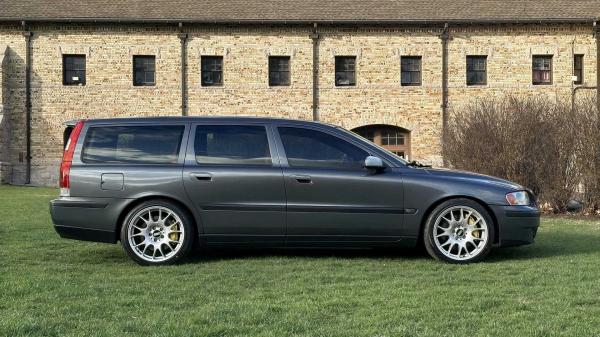

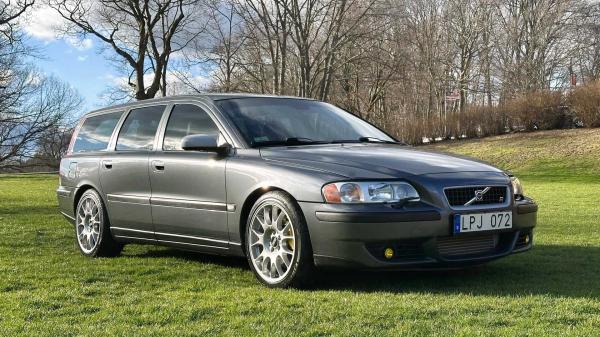

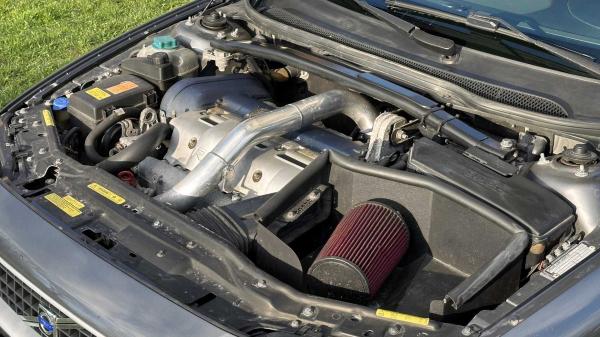

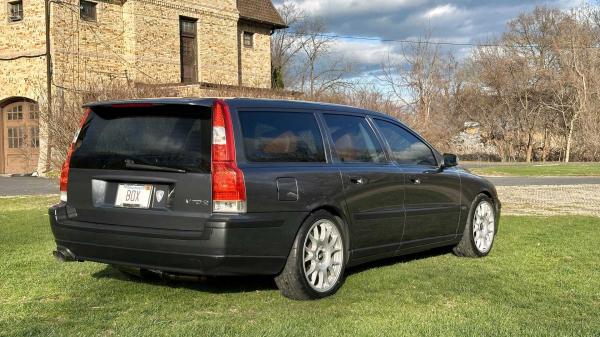

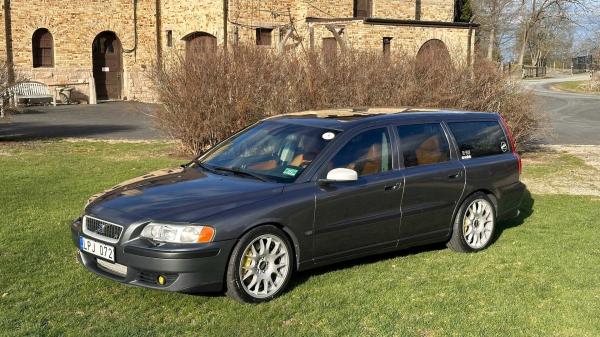

Now the sleeper gets a name. This is enthusiast Aaron Segal’s 2004 Volvo V70R, a car that has seen frequent track days, cross-country travel, and ordinary family use rather than a quiet retirement under a cover. The auction listing documenting the build records a 2021 retrofit with a 2.4-liter B5244T5 inline-five, six-speed manual, Haldex AWD, and a swapped Atacama interior. The engine change is the part enthusiasts should pay attention to. The original 2.5-liter B5254T4 has a reputation for cylinder-wall trouble, particularly when extra boost and heat enter the picture. Instead of treating more boost as step one and reliability as tomorrow’s problem, this build attacked the vulnerable part first. That puts it in a different category from engine-swapped builds created mainly to chase a wild horsepower number.
Why The Smaller-Bore 4T5 Matters
The numbers explain the swap better than any forum legend can. The factory R engine uses an 83mm cylinder bore, while the late-model S60 T5’s B5244T5—or “4T5”—uses an 81mm bore. Volvo specialist ViVA Performance explains the smaller-bore advantage plainly: the 81mm bore leaves thicker cylinder liners than the larger-bore 2.5-liter R block. Two millimeters sounds trivial until you remember that bore diameter grows in both directions, leaving roughly another millimeter of material around each side of the cylinder in this closely related architecture. That is useful reinforcement exactly where the bigger engine earned its bad reputation.
There’s another reason the smaller bore matters here: the goal is repeatability, not one heroic dyno pull. A track-day engine has to survive lap after lap and heat cycle after heat cycle, then start again for the drive home. Extra cylinder-wall material doesn’t guarantee that outcome, but it gives the build a stronger foundation before the tuning begins. That matters more to a forever car than winning the displacement argument on paper.
The 4T5 is not indestructible. A bad tune, too much cylinder pressure, excessive heat, or plain neglect can still convert expensive metal into more expensive metal. But the swap works for this build because it doesn’t throw away what makes the car interesting. It stays within Volvo’s modular five-cylinder family, keeps the turbo-five personality, and gives up a little displacement for a stronger starting point when more boost is on the menu. There are wilder engine swaps, but this is the nerdier and arguably smarter solution: fix the known weakness, then make power. Reliability is the modification.
Beyond The Track, Is This Forever Car Heresy Or Genius?
This is where using the thing starts to make collectors nervous. A production note puts North American P2 V70R volume at 3,407 cars from 2004–2007, with only 345 from the final year. That is a North American figure, not worldwide production, but it is still a small crowd. Recent market results put high-quality manual examples around $17,000 to $25,500, while high-mileage or automatic cars have ranged from roughly $5,600 to $10,750. Those ranges aren’t a universal price guide—mileage, condition, originality, modifications, colors, and history still matter—but they’re enough to make owners start treating the odometer like fine china. The same argument follows plenty of modern collectibles: preserve the car, or preserve the fun?

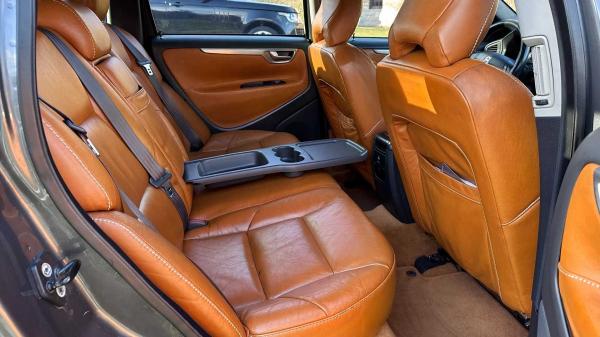

The Atacama interior makes that question even better. This car’s full natural-leather cabin came from a donor with roughly 300,000 miles, so desirable trim that had already lived one very full life simply moved into another wagon. One detail matters here: a 2007 V70R listing documents Atacama as a $1,550 factory option. That was the factory option price, not what was paid for the donor interior. Collectors understandably care about factory paint, original drivetrains, paperwork, and originality. As oddball performance cars from that era become collectibles, a slightly ridiculous problem follows: the more special these cars become, the more tempting it is to stop doing the very things that made them special.
Segal’s “forever car” idea makes more sense to me. Fix the weak block, save the rare interior, keep the AWD and Four-C working, then use the car. That does not mean every surviving V70R should be thrashed until something expensive falls off; abusing a scarce car proves nothing. But this wagon was engineered to haul a family, carry luggage, deal with bad weather, and still give its driver 300 horsepower, a manual gearbox, serious brakes, and an active chassis when the road or track gets interesting. Turning all that hardware into garage furniture misses the point. Using a modern collectible properly is not heresy. Garaging it into irrelevance is.
