Why Series Hybrids Like the Ramcharger Have a Hill Problem That Parallel Hybrids Don’t
A patent published August 13, 2026 puts a spotlight on one of the less-discussed trade-offs in series-hybrid truck ownership: steep grades are fundamentally harder on the battery than most buyers realize. The patent, filed by inventor Daniel Davis and assigned application number 19/051,687, describes a predictive pre-charging system designed specifically to address a power-delivery gap that parallel hybrids like the Toyota Tundra Hybrid simply don’t have.
The distinction comes down to architecture. In a series hybrid — the Ram 1500 Ramcharger being the most prominent truck example — the gasoline engine never turns the wheels directly. It runs a generator, and that generator charges the battery, and the battery powers the electric motors that actually move the truck. That chain works well in most driving conditions. On a long mountain grade, however, it creates a bottleneck that the patent is explicitly designed to solve.
Why the Engine Can’t Just Step In on a Climb

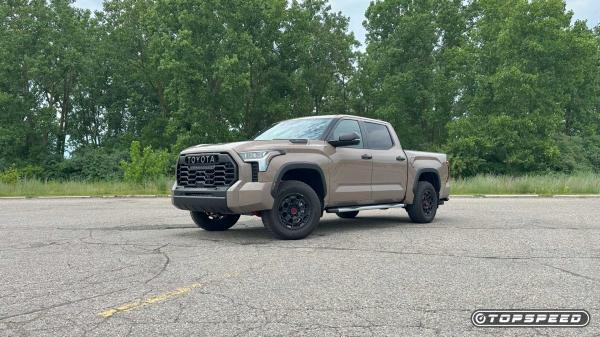

In a parallel hybrid — think Toyota’s hybrid trucks or the Ford F-150 PowerBoost — the internal combustion engine is mechanically linked to the drivetrain. When the grade steepens and demand spikes, the engine can contribute torque directly to the wheels alongside the electric motor. The battery helps, but it isn’t the only path to the pavement.
Series hybrids work differently. The engine’s one job is to spin a generator. Whatever power the generator produces goes into the battery or directly to the motors — but the engine itself has no mechanical connection to the wheels. That means when a Ramcharger is towing a loaded trailer up a 5% grade at highway speed, the electric motors have to supply all the tractive force. If the generator can’t keep up with that demand in real time, the battery fills the gap. And if the battery wasn’t pre-charged for that scenario, it depletes faster than expected.
The patent makes the power asymmetry explicit: in a series hybrid, the battery’s peak output can be five to eight times the generator’s output. The generator is sized for efficiency on flat ground, not for peak demand on a mountain.
What the Patent’s Pre-Charging System Actually Does
The solution described in the patent is predictive rather than reactive. The vehicle’s navigation system reads the road ahead, identifies upcoming elevation changes, and calculates the energy required to climb from the lowest point before a grade to the highest point on it. The core math is straightforward: energy equals mass times the gravitational constant (9.81 m/s²) times the vertical distance to be gained, adjusted for drivetrain losses and rolling resistance.
From that calculation, the battery management system determines a required state-of-charge (SoC) buffer — essentially, how much extra charge the battery needs to carry into the climb. Then it works backward: given the generator’s surplus output above what’s needed to maintain highway speed, how many miles before the grade does charging need to start?
The patent gives a worked example. A vehicle approaching a 1,000-meter elevation gain needs roughly 10.5 kWh of extra energy. If the generator produces 65 kW but the vehicle needs 40 kW to cruise at 85 mph, there’s 25 kW of surplus available for pre-charging. At that rate, the system needs to begin charging about 35.7 miles before the grade begins.
The Variables That Adjust the Buffer
The SoC buffer isn’t a fixed number — it shifts based on conditions the system monitors continuously. Vehicle mass and payload are the most significant factors: a Ramcharger towing a fifth-wheel at maximum capacity needs a much larger buffer than the same truck running empty. The patent lists the full set of inputs: ambient temperature, wind speed, weather conditions, and road surface type all factor into the calculation.
Temperature matters in two ways. Cold air increases rolling resistance and reduces battery efficiency, so the system adds a buffer premium in low temperatures — 10% extra below 0°C, and 20% extra below -20°C, according to the patent’s example figures. Wind speed affects aerodynamic drag, which changes how much power the motors need to maintain speed on the grade. Surface type — whether the road is paved asphalt, gravel, or something else — affects rolling resistance and therefore the energy calculation.
The system can also handle branching routes. If the road ahead splits, the navigation system generates an elevation profile for each branch and sizes the buffer for the worst case.
What This Means for Buyers Planning Mountain or Towing Routes
This patent describes an engineering solution, not a problem that’s gone unaddressed — but it does clarify a real constraint that buyers should factor into their expectations. Series hybrids offer genuine advantages: they can run in pure-EV mode for daily commuting, the engine operates at a consistent, efficient load rather than tracking road demands, and the architecture is mechanically simpler in some respects. Those are meaningful benefits.
The trade-off is that the battery carries more responsibility on demanding terrain than it does in a parallel hybrid. A well-implemented predictive pre-charging system should handle most scenarios automatically, but the system’s effectiveness depends on the navigation data being active and the route being known in advance. An unplanned detour onto a steep forest road, or a driver who ignores the navigation, removes the predictive advantage and leaves the battery to manage the climb reactively.
For buyers who regularly tow in mountainous terrain — Colorado passes, the Sierra Nevada, the Appalachians — understanding this architecture difference is worth the time before signing. The Ramcharger’s generator is a capable unit, but it was never designed to be the sole power source on a sustained grade. The battery is the buffer, and the patent published this month describes exactly how the truck is supposed to keep that buffer full.
