The Bulletproof Toyota Six Every Gearhead Dreams of Owning
Every series production engine is designed around a target output, with a safety margin or headroom built in on top. That margin costs money in casting weight and machining time, and the manufacturer never gets it back once the car is sold, but it pays dividends in reliability and longevity. Most companies keep it as thin as they can.
A small group of Japanese engines from the 1990s broke that rule, because their advertised power was capped by an agreement between rival automakers rather than by anything mechanical. One Toyota 3.0-liter inline-six left the factory claiming 276 horsepower with enough structure underneath to handle four times that. This is about the block, not its Hollywood career.
A Handshake Between Rivals Capped Japanese Power At 276 HP
Japan’s now-defunct Gentlemen’s Agreement was an industry-wide ceiling that capped advertised power at 280 PS (276 hp) for cars sold on the domestic market. It was an understanding between rival automakers rather than a law, and it governed what appeared in the brochure rather than what came out of the engine. However, nothing in that agreement outlined how that was to be achieved or governed in engineering terms.
Independent dyno testing of factory-spec engines from the era routinely showed 320 to 335 hp at the crank against that printed 280 PS. The gap was measurable and consistent, and buyers in Japan understood it well enough that the advertised number stopped meaning much.
Capping the advertised figure while leaving the engineering budget alone changes where the money goes. Rather than chase a bigger headline, manufacturers spent on durability: heavier castings, stronger bottom ends, and conservative factory tunes. That is the mechanism behind an overbuilt engine, and it was working across the Japanese industry at once.
Western manufacturers worked to the opposite brief in the same period. The rating was the goal, the block was cast to suit it, and the headroom above that figure stayed deliberately thin.
Export markets were never bound by the agreement, which is why identical hardware carried two different numbers depending on where the car was sold. One engine stretched that mismatch further than anything else built in the decade.
The 2JZ-GTE Left Japan With 276 HP And Landed In America With 321 HP

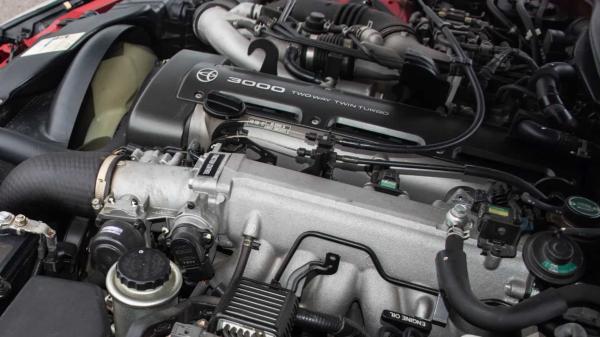

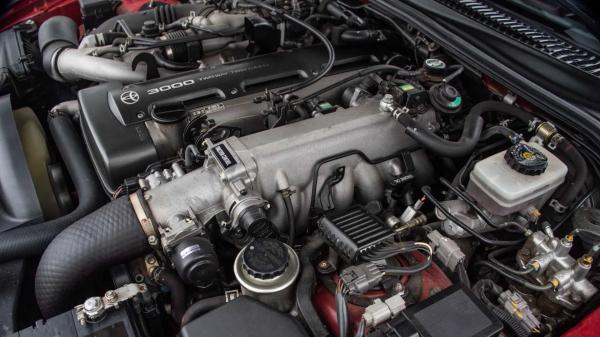

Toyota’s 2JZ-GTE is a 3.0-liter twin-turbocharged straight-six, displacing 2,997 cc and built at the Tahara Plant in Aichi, Japan, from 1991 to 2005. It first appeared in the Toyota Aristo V before becoming the company’s flagship performance engine in the A80 Supra in 1993. Compression sits at 8.5:1.
First-generation JDM engines were rated at 280 PS at 5,600 rpm and 319 lb-ft at 3,600 rpm, which works out to 276 hp. North American and European cars received CT12B turbochargers, revised camshafts, and larger 550 cc/min injectors, lifting the official figure to 325 PS and 325 lb-ft. The US brochure listed 321 hp and 315 lb-ft.
Sequential twin turbochargers separate the GTE from the naturally aspirated version, with the first unit working at low rpm and the second joining partway up the range. Both feed an air-to-air side-mounted intercooler.
Japanese cars used ceramic turbine wheels, while export CT12B units received more durable turbine housings along with stainless steel turbine and impeller fins. Those ceramic wheels become a known failure point once boost climbs above stock, which is the single biggest reason JDM imports get converted to a single turbo early in their lives.
The 2JZ shares bore size, bore pitch, and general architecture with the smaller 1JZ, but it is not simply a stroked version of it. Toyota gave the 3.0-liter a taller block deck and longer connecting rods to accommodate the 14.5 mm stroke increase.
Against the naturally aspirated 2JZ-GE, the turbocharged version shares its block, crankshaft, and connecting rods. The differences are recessed piston tops for lower compression, oil spray nozzles that cool the pistons from underneath, and a head with redesigned intake and exhaust ports, cams, and valves.
All of that iron carries a weight penalty, and a fully dressed 2JZ-GTE runs to over 500 lbs. That is heavy for a 3.0-liter six, and it buys everything that makes the block worth studying.
A Closed Deck And A Deep Skirt Do The Structural Heavy Lifting For The 2JZ

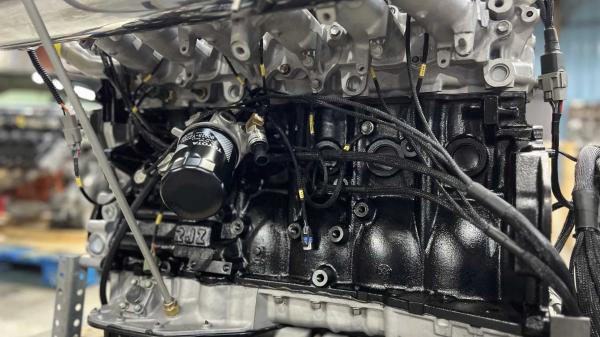

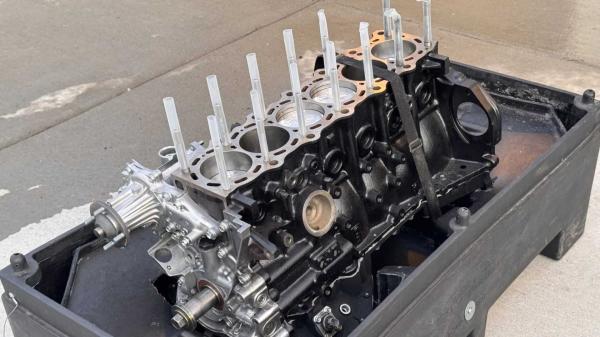

The 2JZ block is closed-deck iron with seven-bearing support, a forged crankshaft, dished aluminum pistons, and oil squirters beneath each piston. A closed deck means the top of the block is largely solid around the cylinders instead of open to the water jacket, so the bores stay tied to the outer structure and resist flexing when cylinder pressure spikes.

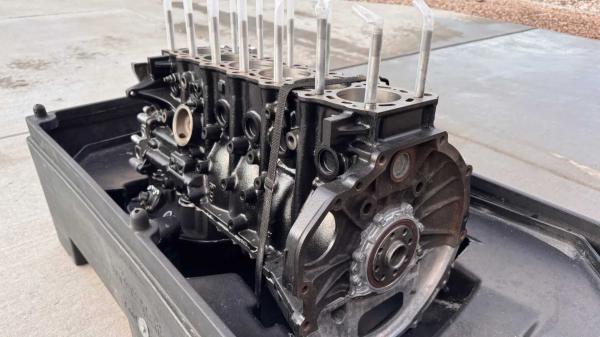

The block’s main structure extends past the crank centerline, a deep-skirt design that plenty of engines skip. Many blocks stop at the crank midline and let the main bearing caps hang below, which is cheaper to cast and machine but usually requires the main bearing journals to be reinforced before the engine sees serious loads.
Toyota specified a forged crankshaft rather than a cast one, with 62 mm main journals and 52 mm rod journals. Those are generous dimensions, and aftermarket billet cranks are unnecessary for everything short of the most extreme builds. The crank runs in seven journals with twelve counterweights, and both the pins and journals are induction-hardened.
Iron tolerates stress better than aluminum, expands less with heat, and has a defined fatigue limit. Held below that limit, it survives an effectively unlimited number of load cycles. Aluminum has no such threshold and moves a little closer to failure every time the load is applied, which is why an iron block ages differently under repeated hard use.
Oil spray nozzles cool the pistons from below, holding crown temperatures down as boost rises. The square 86 mm bore and 86 mm stroke balances low-end torque against a willingness to rev, and dual knock sensors threaded into the block let the ECU catch detonation early and pull timing or boost before damage starts.
The Weakest Links Are The Pistons And Main Caps
The stock internals of the 2JZ will support an easy 600 hp with factory durability intact, and roughly 800 hp once aftermarket main bearing caps go in. Builders generally treat 600 to 700 hp as the sweet spot for a street or track car, where nothing internal needs replacing, and the engine still behaves like a Toyota.
Real Street Performance, a shop that has been building these engines for years, has seen factory main caps fail in cars making 800 hp at the wheels and survive in cars making 1,000. The shop describes the part as unpredictable and not something a build should depend on, and says there is no exact number at which it lets go.
The main caps are cast iron, which is the root of the problem. Casting introduces more variation than forging or machining from billet, so two engines with identical mileage and identical tunes can behave completely differently at the same power level.

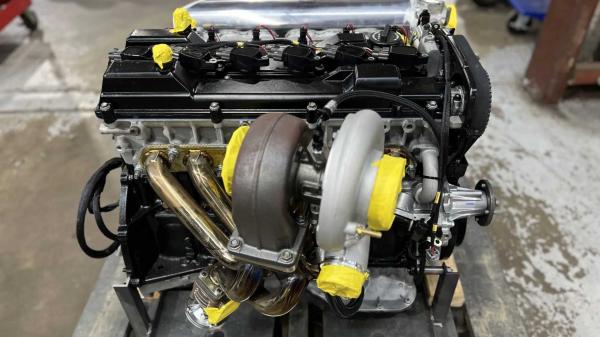

Real Street’s rule of thumb is billet main caps for anyone running a 68 mm turbocharger or larger, because a 68 mm turbo can make 1,000 hp at the wheels on these cars. Other build guides put the sustained-use limit for factory caps closer to 700 hp, which lines up with what the shop has seen.
Factory head bolts are the other item builders replace, since torque-to-yield fasteners are single-use and were never rated for boosted applications. Studs cost very little next to a lifted head gasket.
The replacement order runs pistons and rods first, then main caps, then head studs. The crankshaft stays where it is, and unless the build changes displacement or moves to a smaller rod journal, the factory piece will go a very long way.
Racers Only Reach For A Billet Block Past 2,000 HP
Drag teams running 60 to 80 psi of boost, and sometimes more, have produced upwards of 2,000 hp on modified versions of the stock iron block. At that level the failure is specific rather than random: the block splits vertically along the head studs under cylinder pressure.
Titan Motorsports ran a factory iron block producing over 2,000 hp before developing its own billet replacement, and the company still considers the factory unit more than adequate for street use. Its billet block was designed as a race-only piece, with no water jackets and forged steel main caps.
The current extreme is Jose Gonzalez’s 3,000-hp 2JZ Camry, which runs a Mazworx billet block and a single 110 mm Precision turbocharger. It still uses factory-cast Toyota cylinder heads, heavily modified. Even at the outer edge of what this architecture can do, the Toyota casting is the last thing anyone replaces.
Source: Toyota, Real Street Performance
