Toyota’s New 2.0-Liter Turbo Four Was Secretly Engineered To Swallow 600 HP
Every legendary Toyota engine earned its place in the automotive pantheon the exact same way. It wasn’t because of the power numbers printed in the glossy showroom brochures, nor was it because of how efficiently they commuted. Icons like the iron-block 2JZ-GTE, the high-revving 4A-GE, and the rally-bred 3S-GTE became permanent fixtures of tuner culture because of how much abuse their engine blocks could survive after they left the factory.
For the last twenty years, that legendary over-engineering feels like it has left the building. Modern emissions regulations, strict fuel economy targets, and tight production budgets have forced global automakers to optimize their powertrains with razor-thin tolerances. Modern engine castings are typically drawn up with walls just thick enough to survive factory power levels and a standard warranty period, leaving virtually no headroom for the average person to tune their own sports car.
But Toyota’s latest powertrain development reveals a massive, deliberate shift in philosophy. For the first time in two decades, an automotive giant has openly admitted to casting massive structural headroom into a production-bound engine layout on purpose.
The Blueprint Of Tuner Legends: Why Over-Engineering Matters
True tuner legends were always born out of the casting foundry, not in some software engineering lab. The engines that everyone remembers from the golden era of Japanese performance didn’t dominate because they were sophisticated out of the box; they dominated because their physical architecture was built to tolerate extreme abuse.
The Heritage Of Built-In Abuse Tolerance

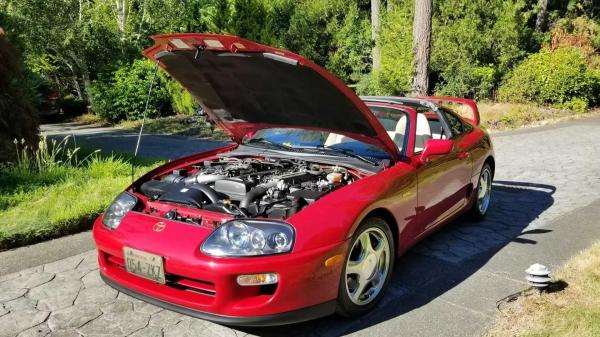

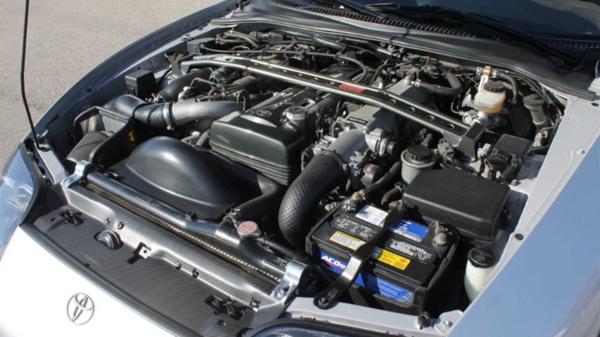

When Toyota dreamed up the 2JZ-GTE in the early 1990s, it was cast with a massive, closed-deck, cast-iron block and exceptionally thick cylinder walls. They didn’t do this expecting the factory car to push 1,000 horsepower; they did it to ensure reliability under heavy commercial loads and racing conditions. The happy accident was that when the tuner scene began bolting massive turbochargers to the block, the foundational metal didn’t flex, distort, or crack.
The Modern Conundrum

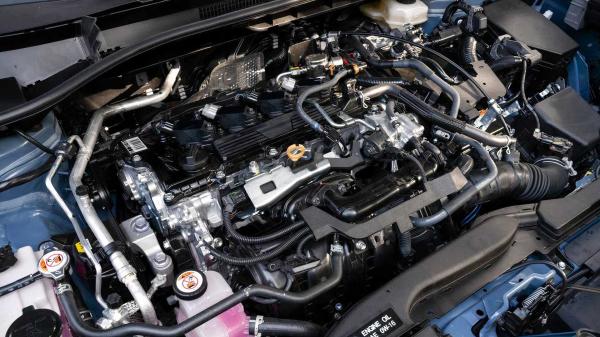

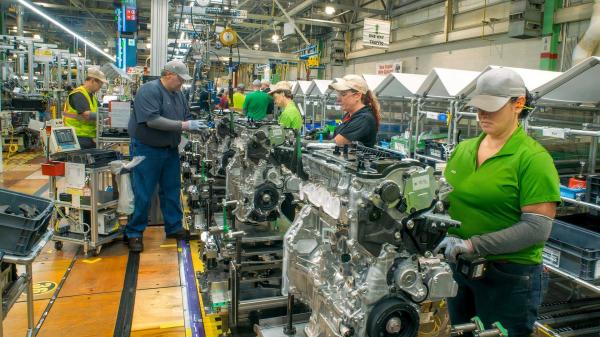

In contemporary engine manufacturing, that safety margin has largely vanished. To reduce weight and ensure rapid engine warm-up times (which drastically lowers cold-start emissions), modern aluminum blocks use thin-wall castings. Cylinders are packed tightly together, and water jackets are optimized for thermal efficiency rather than structural rigidity under triple the factory atmospheric pressure. If a modern enthusiast attempts to double the output of a standard commuter four-cylinder, it will likely result in split cylinder liners, warped decks, or blown head gaskets.
This structural limitation is exactly what makes Toyota’s current engine program so radically counter-cultural. In an era where internal combustion is treated by many OEMs as a compliance chore to be phased out, Toyota is approaching its next generation of internal combustion with the intent to build a new legacy of reliability.
Introducing The Toyota G20E: Built To Move The Boundaries
The manifestation of this new philosophy is the Toyota G20E—an upcoming 2.0-liter, turbocharged four-cylinder engine that is currently undergoing rigorous real-world testing. Rather than keeping this engine under wraps in a subterranean simulation lab, Toyota has been actively shaking it down in highly visible, functional testbeds: a mid-engine GR Yaris M concept and a longitudinal Lexus IS prototype.
While the engine is undergoing real-world validation inside a Lexus chassis and a modified hot-hatch concept, Toyota has not confirmed that the G20E is slated to replace the existing T24A turbocharged motor in the production GR Corolla or the street-legal Lexus IS. For now, it remains a dedicated development powerhouse.
From Concept To 600-Horsepower Reality
Even in its early development stages, the G20E is putting down numbers that eclipse most production sports car engines. In its current concept configurations, the motor reliably produces between 400 and 450 horsepower (with some baseline calibrations hovering around 395 horsepower / 400 PS).
However, the real shockwave through the automotive community came from an interview with Toyota engineers published by the German outlet Auto Motor und Sport. When questioned about the ceiling of this new 2.0-liter architecture, the engineering team dropped a quote that immediately set the tuner world on fire:
With a larger turbocharger, more than 600 horsepower is easily possible.
For a street-legal, mass-production variant, global emissions and durability testing mean the final showroom output will likely vary—with enthusiast media estimating anywhere from a conservative 296 horsepower up to a screaming 500 horsepower depending on the application. But the takeaway isn’t the number on the factory window sticker; it’s the fact that the underlying hardware is fundamentally built to double that output.
The Anatomy Of A 600-Horsepower Four-Cylinder Block
To understand why a 600-horsepower claim from a factory 2.0-liter four-cylinder is so significant, you have to look past the software tuning and electronic wastegates and analyze the fundamental physics of engine design.
Bore Spacing: The Core Of Cylinder Wall Integrity
The mechanical linchpin of the G20E’s high-output capability comes down to a single engineering choice confirmed by Toyota’s development team:
We left enough space between the cylinders so that the engine can be bored out considerably.
In engine architecture, bore spacing represents the distance from the exact center of one cylinder to the center of the next. When an automaker designs an engine solely for compact packaging, they push these cylinders as close together as possible, leaving very thin walls of metal—known as the block webs—between the combustion chambers.
By intentionally engineering wide bore spacing into the G20E, Toyota has left a massive amount of structural metal between the cylinders. Thick block webs prevent the cylinder walls from flexing or distorting under load. Furthermore, this extra material allows builders to physically machine the cylinders to a larger diameter (overboring) to increase displacement, without risking a catastrophic structural failure between the chambers.
Beyond The Cylinders: Deck Height, Head Bolts, And Thermal Stress
While Toyota has only explicitly verified the engine’s generous bore spacing, standard high-output four-cylinder engineering principles dictate exactly what else must happen within a block to reliably sustain 600 horsepower without exploding. To match the engineering headroom implied by Toyota’s engineers, the G20E’s broader architectural ecosystem likely accounts for several critical stress factors:
- Deck Height Rigidity: The distance from the crankshaft centerline to the top deck of the block (deck height) determines the length of the connecting rods. For a block to endure high-rpm thrashing at 600 horsepower, a robust deck design is mandatory to minimize structural deflection when the pistons change direction under maximum load.
- Head Bolt Clamping Force: High boost pressure wants to physically push the cylinder head off the engine block. To combat this, an engine designed for tuning headroom requires deep, thick head bolt bosses and an optimized bolt pattern to ensure the head gasket remains perfectly sealed under immense combustion pressures.
- Cooling Jacket Flow: Thickening a block for structural strength usually compromises the cooling jackets—the channels wrapped around the cylinders where coolant flows. Engineering an engine that can handle both heavy tracking heat and thick cylinder walls requires an incredibly sophisticated cooling passage design to eliminate hot spots that cause destructive engine knocking.
One Block, Multiple Horizons: Transverse Vs. Longitudinal
Beyond the internal geometry of the block, Toyota has given the G20E’s external design some precious versatility. The engine has been engineered to accommodate both transverse (traditional, side-to-side packaging typical of front-wheel-drive and all-wheel-drive layouts) and longitudinal (north-south packaging built for traditional rear-wheel-drive platforms) orientations. Doing so allows for many more configurations out of the factory, but also leaves the door open for potential engine swaps in the years to come.
The Packaging Logic Behind Toyota’s Multipathway Strategy

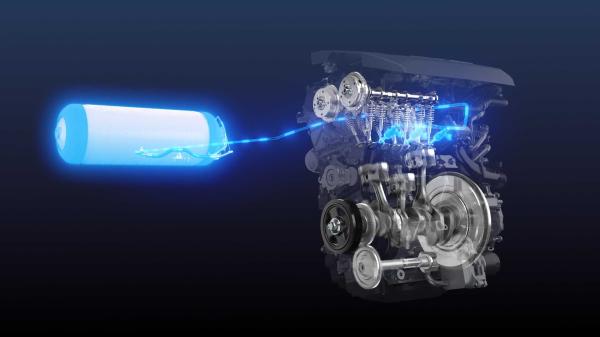

This dual-layout capability is a direct extension of Toyota’s broader corporate mission: the Multipathway Approach. Championed alongside partners Mazda and Subaru, this strategy asserts that the path to carbon neutrality shouldn’t rely solely on battery-electric vehicles. Toyota has been vocal about this over the years and is actively investing in extending the lifespan of the internal combustion engine by optimizing it for carbon-neutral synthetic fuels, hydrogen combustion, and advanced hybrid integration.
Because the engine can be mounted transversely, it is a mechanically plausible heart for a mid-engine platform, sparking intense rumors of an MR2 revival. Because it can be mounted longitudinally, it perfectly fits the dimensional requirements of a traditional front-engine, rear-wheel-drive sports car, sending the enthusiast community into overdrive speculating about a revived Celica, a next-generation GR86, or a future iteration of the Supra.
To be clear: Toyota has not announced any product roadmaps confirming these sports cars are headed to production. But by creating an engine that can physically fit into all of them, Toyota has made those dreams mechanically possible.
Hype Or Real Mechanical Backing
In the automotive media, labeling any new engine a “2JZ successor” is a massive piece of enthusiast shorthand. It is a title usually thrown around to generate clicks rather than to reflect factory positioning, and Toyota itself is certainly not marketing a 2.0-liter four-cylinder as a direct copy of its most famous inline-six.
However, if you strip away the marketing definitions and look strictly at the underlying hardware, the comparisons to the 2JZ in this case are pretty valid. The 2JZ was certainly impressive out of the factory, but the primary reason it was legendary was that it provided a foundation that enthusiasts could build on. It made the car scene just a little more fun.
Source: Toyota, PC Auto, Auto Blog, Motor1, Car Scoops, Slash Gear
