This Plain White Ford Was Secretly A 425-HP 11-Second Factory Drag Racer
One of the nastiest cars Ford ever made looked like it belonged in a church parking lot. Wimbledon White paint. Black interior. No wild graphics or cartoon mascot. But lift off the fiberglass hood, and you’d find dual-quad carbs atop an enormous 427 cubic-inch FE block V8 rated at 425 horsepower. The wildest thing is that it was just one of 57. But this “little car that could” would go on to inspire one of NASCAR’s biggest rule changes ever.
Detroit’s Automakers Would Do Almost Anything To Win A Quarter-Mile
By the early 1960s, the Detroit Three were locked in an epic battle on the drag strip. Their weapons of choice were lightweight factory-built monsters. In early 1963, Chevrolet broke 120 mph in the ¼ mile with the Impala Z11 thanks to aluminum bodywork and a special 427. Mopar’s 426 Max Wedge lightweights traded steel body pieces and creature comforts just to keep up. Meanwhile, Pontiac was drilling 120 holes through the frame of its “Swiss Cheese” Catalina to reduce weight.
General Motors formally ended direct factory racing support in 1963, but Ford and Chrysler kept going. Ford had already paired its 427 FE with lightweight Galaxies. The lesson was becoming brutally simple: adding horsepower mattered, but shedding pounds mattered just as much. So Ford resolved to wrap a smaller body around its biggest racing engine. The intermediate Fairlane was the obvious choice. The problem was that it hadn’t been designed to hold an FE block V8.
Ford Completely Rebuilt A Fairlane Around The 427 Cu-In V8 To Create The Thunderbolt
Ford’s famous 1964 factory drag racer was the Fairlane Thunderbolt. But “factory-built” deserves an asterisk. Dearborn Steel Tubing built 100 Thunderbolts around the 427 FE. The Fairlane needed a major reworking of its engine bay, including re-engineering of its front suspension, to clear the big-block. Ford reduced weight further with fiberglass body panels, Plexiglas side and rear windows, a trunk-mounted battery, and a stripped cabin. It was less a Fairlane option package than a custom-built racecar wearing Fairlane-shaped body panels.
The Thunderbolt’s 427 “High Riser” with its dual-quad carb earned a 425-horsepower factory rating. It propelled the little car to an NHRA Super Stock championship. Gas Ronda drove the car to the 1964 Hot Rod Magazine Championships and the Stock World title. One documented Thunderbolt Winternationals finalist clocked 11.78 seconds and 123.40 mph. The custom-built race car may have made Blue Oval company brass wonder, “Imagine if a stock Fairlane could fit the 427?” Luckily, the car was due for a redesign.
By 1966, 427-Powered Fairlanes Were Rolling Off The Assembly Line
For 1966, Ford’s redesigned Fairlane used an all-new unit body. With a larger engine bay, it came with the 390 cubic-inch FE V8 as a regular factory option. With the same short block, a 427 bolted right into place. The big engine’s exhaust headers were a different matter, requiring 1⅛-inch access holes drilled in both spring towers just to install.

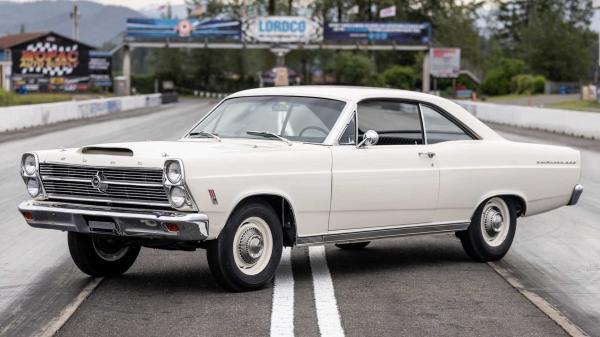

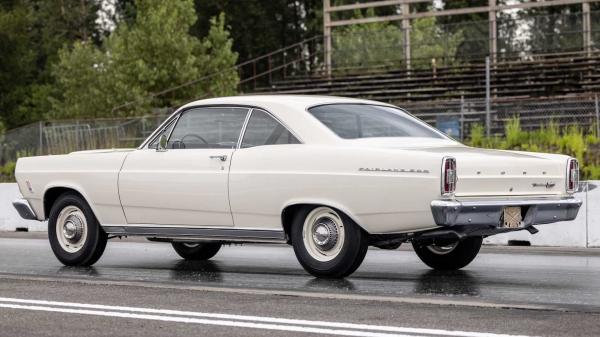

Midyear, Ford built 57 R-code Fairlane 500 hardtops, all Wimbledon White with black interiors. In addition to the 427, they were equipped with four-speed transmissions and lift-off fiberglass hoods.
The 427 had benefited from a slight reworking since its Thunderbolt days, but retained its 4.23-by-3.78-inch bore and stroke. The new 427 FE “side-oiler” featured Medium Riser heads and intake, two Holley four-barrels, and an official 425-horsepower, 480-lb-ft rating. Ford’s Toploader four-speed manual transmission sent that power through a 9-inch rear end with a 3.89 gear ratio. Front disc brakes and transistorized ignition rounded out the package.
Ford’s Unassuming White R-Code Fairlanes Were 11-Second Drag Cars
Ford’s 1966 swing at 427-powered Fairlanes was a roaring success. One car, VIN 6A43R249136, survives with period ET slips showing a best 1/4-mile time of 11.95 seconds. But it’s far from the only 11-second Fairlane. Dover Drag Strip’s historical archive says John Downing bought the “RESPECT” Fairlane from Dockery Ford and had John Healy convert it to Super Stock trim over the winter of 1966-67. In May he set an NHRA SS/B national record of 11.42 seconds at Madison County Raceway Park. With times like these, there were few factory drag racers that could hope to match the R-code Fairlanes in the stock class.
Ed Terry’s 1966 Fairlane Lightweight won Super Stock/Class B at the 1967 U.S. Nationals. This result was initially disqualified over a tech issue, but the NHRA reports Terry’s win was later reinstated on appeal. Harold Dutton’s 427 Fairlane set multiple NHRA national records that year and carried him to the NHRA Division 2 Super Stock championship. Then Tom Schumacher’s actual one-of-57 1966 R-code chassis, converted to the single-four-barrel W-code combination and a steel hood for Stock, won A/Stock at both the 1968 Springnationals — 12.01 at 117.18 mph — and the U.S. Nationals — 11.93 seconds. Two years after Ford built those 57 white cars, at least one was still collecting class trophies at two of NHRA’s biggest events.
Ford Took Its 427-Powered Fairlanes To Daytona
A high-output 427 cubic-inch V8 in an intermediate Fairlane car had a ton more potential than straight-line records. Mario Andretti started the 1967 Daytona 500 from 12th in the No. 11 Fairlane, prepped by the Holman-Moody garage. He led 112 of 200 laps and beat teammate Fred Lorenzen for the victory.
In 1964, Ford practically assembled a Fairlane around a 427 for the drag strip. By 1966, it could build a 427 Fairlane on the assembly line. One year later, a purpose-built Fairlane from Ford’s 427-powered NASCAR program was sitting in Daytona’s Victory Lane. Just as importantly, Ford’s Fairlane race car ushered in NASCAR’s second generation. Because the production 1967 Fairlane used unibody construction, racing officials allowed Ford to install a purpose-built chassis beneath a stock-appearing body. This unassuming car won races and a place in the history books.
Sources: Ford Racing / Ford Performance, NHRA, Barrett-Jackson, NASCAR, Georgia Racing Hall of Fame, The Dover Drag Strip; The NHRA’s 60s Superstock Diary
