The Forgotten Cadillac V8 That Shut Off Cylinders In 1981
When we think of Cadillac and V8s, we don’t usually think of saving gas. Take the 6.2-liter supercharged LT4 V8: it pumps out 650 horsepower, but under the hood of the CTS-V, FuelEconomy.gov says it can only achieve 16 combined mpg.
Cadillac has turned out some of the best V8s ever, like the 331-cubic-inch OHV V8 of the late ’40s, the 500-cubic-inch big-block of the late 1960s , and the Northstar V8 of the 1990s and 2000s, but in the 1980s, they tried something very different.
How The 1970s Fuel Crisis Pushed Cadillac To Reinvent Its V8
Cadillac wanted its V8s to use less fuel. That may sound fairly ordinary today, but in 1981 it was a lot bigger task. Everyone still wanted a Cadillac to come equipped with the characteristically smooth, effortless V8, but the fuel crisis of the 1970s changed the market. Gas was more expensive, fuel economy became a much bigger selling point, and the Corporate Average Fuel Economy (CAFE) rules were putting a lot of pressure on brands to reduce consumption.

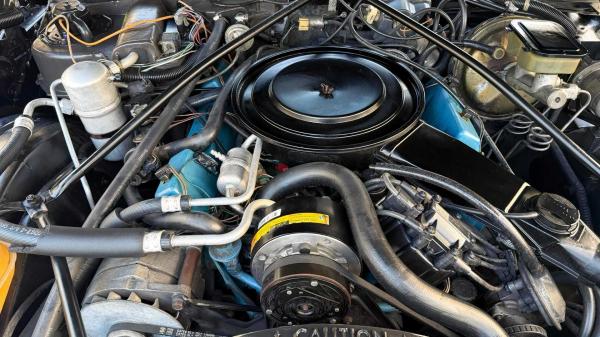

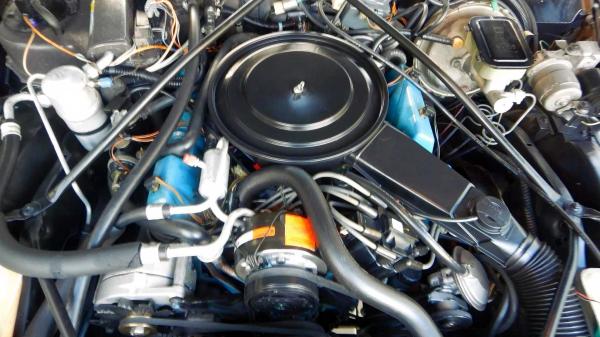

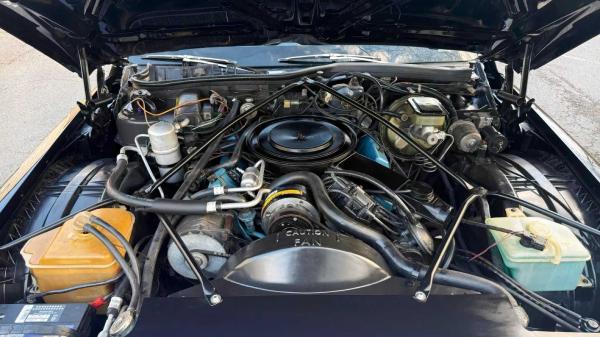

Cadillac had already started making its cars and engines smaller, but didn’t want to quit the V8. Instead of making the V8 smaller, Cadillac tried to make it smarter. For 1981, it introduced the V8-6-4 (L62), a 6.0-liter (368-cubic-inch) V8 equipped with a system called Modulated Displacement. It kicked out 140 horsepower at 3,800 rpm and 265 pound-feet of torque at 1,400 rpm. Yes, low horsepower, but that was the result of the era’s rules.
The Fuel-Saving Idea Behind Cylinder Deactivation
When you need performance, all eight cylinders fire; then, when you don’t need all the power, it will shut some down. In theory, the same mill could act like a V8, a six-cylinder, or a four-cylinder, depending on how much power is needed. It was an ambitious idea for the time, but the logic behind Cadillac’s cylinder deactivation was quite straightforward.
A large V8 doesn’t need all of its cylinders working hard when you are cruising along a flat road or sitting at a steady speed. By deactivating some cylinders, the engine can concentrate the workload on the cylinders that are still active. This means a large-displacement V8 can stay put while reducing the amount of fuel it uses. The concept was elegant. But turning a clean idea into a working engine in 1981 was a completely different problem.
The Cadillac V8-6-4 Was Years Ahead Of Its Electronics
Cadillac worked with Eaton to build the V8-6-4. They developed the valve-train tech needed to switch individual cylinders on and off. Eaton’s system uses electronically controlled mechanisms in the rocker-arm assemblies, giving a way to deactivate valves without adding a separate valve train or totally redesigning the V8. That is the important point: the V8 remained a conventional pushrod layout while gaining variable displacement.
This kind of tech in the ’80s made the V8-6-4 an interesting mix of old and new engineering. Beneath the cylinder heads is familiar American V8 hardware, but sitting on top is a much more complicated blend of solenoids and control mechanisms. The system also integrates Cadillac’s Computer Command Module, which reads engine speed, load, and temperature to determine when the Eaton hardware should activate. Cadillac had essentially taken an awesome big-displacement pushrod V8 and given it an electronically controlled valve train.
How The Engine Switched Between Eight, Six, And Four Cylinders
The V8-6-4 doesn’t stop a cylinder by somehow stopping its piston. The crankshaft, camshaft, lifter, pistons, and pushrod continue moving the same way as they usually would in a V8. Instead, the system interrupts the final link in the valve train. The affected rocker arms have a pivot-point setup that is moved by an electronically operated solenoid. With that engaged, the rocker pivots and transfers the pushrod’s movement to the valve. When the solenoid shifts the blocking mechanism, the rocker can no longer open valves.
The cam still turns, but the intake and exhaust valves are shut. The engine doesn’t change displacement; the setup just chooses which cylinders can breathe. Cylinders are shut down in pairs, and those pistons in inactive cylinders still move, compressing the trapped air in the combustion chambers. That air acts like a cushion, and helps to smooth out the transition while keeping the cylinders warm enough to come back quickly. When more power is needed, the solenoids re-engage the mechanisms, the valves open, and the cylinders go back to work.
Why Early Electronic Controls Struggled To Keep Up
The V8-6-4’s electronics were groundbreaking partly because they had to coordinate quite a large number of components. The control module isn’t just sending a signal to the valve train; it has to command individual solenoids and keep those commands synchronized with what the engine is doing. A mistake of only a few degrees of crankshaft rotation could mean the hardware is being asked to act at the wrong point.
There is also the fundamental issue with 1981-era electronics: better than what the ’70s offered, but nowhere near good enough to handle things as easily as they do today. Cadillac was effectively trying to close a loop between combustion, valve-train movement, and electronic commands using tech still in its early stages. But the electronics were only part of the story — the bigger problem was that the engine couldn’t reliably decide when it was safe to shut cylinders down at all.
The V8-6-4’s Biggest Problem Was Knowing When To Shut Down

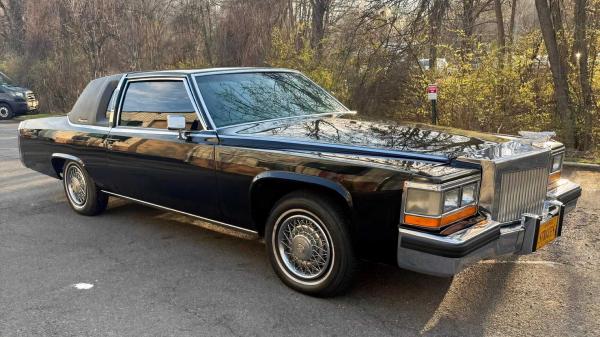

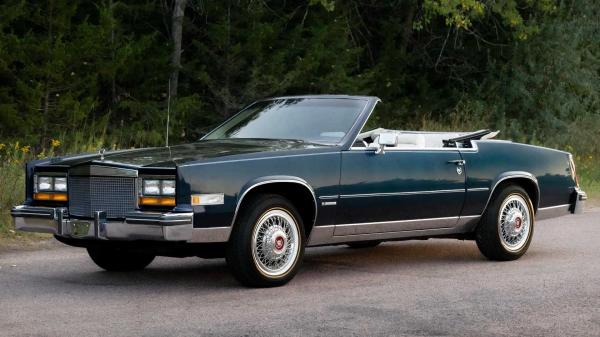

Cadillac fitted the V8-6-4 in a lot of its luxury sedans and coupes in 1981. It was the standard engine in the Coupe DeVille, Fleetwood, and Eldorado, while anyone who bought a Seville in ’81 could also opt for it instead of the standard Oldsmobile diesel V8. This meant Cadillac wasn’t treating this forgotten V8 as an experiment; it was putting the tech into some of its most important luxury models of the time.
The problem was that cylinder deactivation only works if the engine knows exactly when to use it. The system has to distinguish between genuine light-load cruising and the countless small changes in load that happen when you are driving normally. A slight grade, a change in throttle position, or a transmission shift can alter what the engine needs.
Unpredictable Operation Turned A Clever Idea Into A Frustrating One
When the system gets that balance wrong, the V8-6-4 can become a nightmare and a massive headache for owners. And it did, frequently. Instead of feeling nothing, as cylinders shut off and returned, as was intended, a lot of engines experienced hesitation, surges, and roughness as the system changed what cylinders were being used. The whole point was to make it feel seamless; that didn’t happen, and the technology became very difficult to ignore.
Cadillac wasn’t simply dealing with a bad batch of engines either. The 6.0-liter V8 was fundamentally good; it was the complexity added around it that made it a nuisance. Cadillac did issue updates to the control system to improve it, but dealers and owners were left dealing with technology that was difficult to diagnose and calibrate. In other words, it didn’t work well.
Cadillac Pulled The V8-6-4 After One Year — But Kept It Alive In Limos
The V8-6-4 will never make the list of the most reliable engines ever made, but the thing is, the idea wasn’t wrong. Cadillac was trying to solve a problem that would eventually be solved, but just too soon. The V8-6-4 disappeared from most Cadillac models after 1981, with the tech only surviving in a much more limited way, like in some of its limos.
The failure wasn’t proof that variable cylinder deactivation was a bad idea; it was just an early example showing that cleverness is only half the job when the computer controlling it isn’t ready yet. Today, modern systems have a lot more capable processors, far more precise fuel and ignition control, and much more sophisticated ways of deciding when cylinders should be shut down and restarted.
The Technology Failed, But The Idea Wasn’t Wrong
One of the more unusual features in V8-6-4-equipped models is the MPG Sentinel, a digital display on the dash that shows fuel economy, estimated range, and how many cylinders are working at a given time. We have this kind of thing in most vehicles today, but in ’81, it was cutting-edge. Plus, it does show how far ahead of the game Cadillac was trying to be.
The 1981 Coupe DeVille is officially rated at 17 combined mpg, or 15 mpg in the city and 23 mpg on the highway (some people have reported a lot less, though). For a massive, 4,151-pound luxury car from the 1980s , it’s not terrible, but it hardly made the über complicated V8-6-4 a fix for high V8 fuel consumption. The important thing to remember, though, is that Cadillac’s idea eventually worked. Honda, GM, Chrysler, and Mercedes-Benz all went on to develop usable cylinder-deactivation systems.
GM introduced Displacement on Demand in 2005, and Chrysler added its Multi-Displacement System to the HEMI V8 in 2005 as well. Modern engines can deactivate cylinders almost invisibly, and use far more capable electronics and fuel controls. They now work very well. Think the 187-horsepower Mazda Skyactiv-G inline-four in the new CX-5; it can switch between two and four cylinders seamlessly .
Despite the CX-5 being four-wheel drive, the Skyactiv-G with cylinder deactivation helps it achieve up to 26 combined mpg and gives a gas-tank range of 398 miles. Cadillac simply arrived a couple of decades too early, and while the V8-6-4 disappeared almost as quickly as it arrived, its influence stuck around. Today, cylinder deactivation is very common in big engines, quietly doing what Cadillac’s complicated 1981 experiment was never quite able to do well.
Sources: Cadillac, Classic.com, FuelEconomy.gov.
