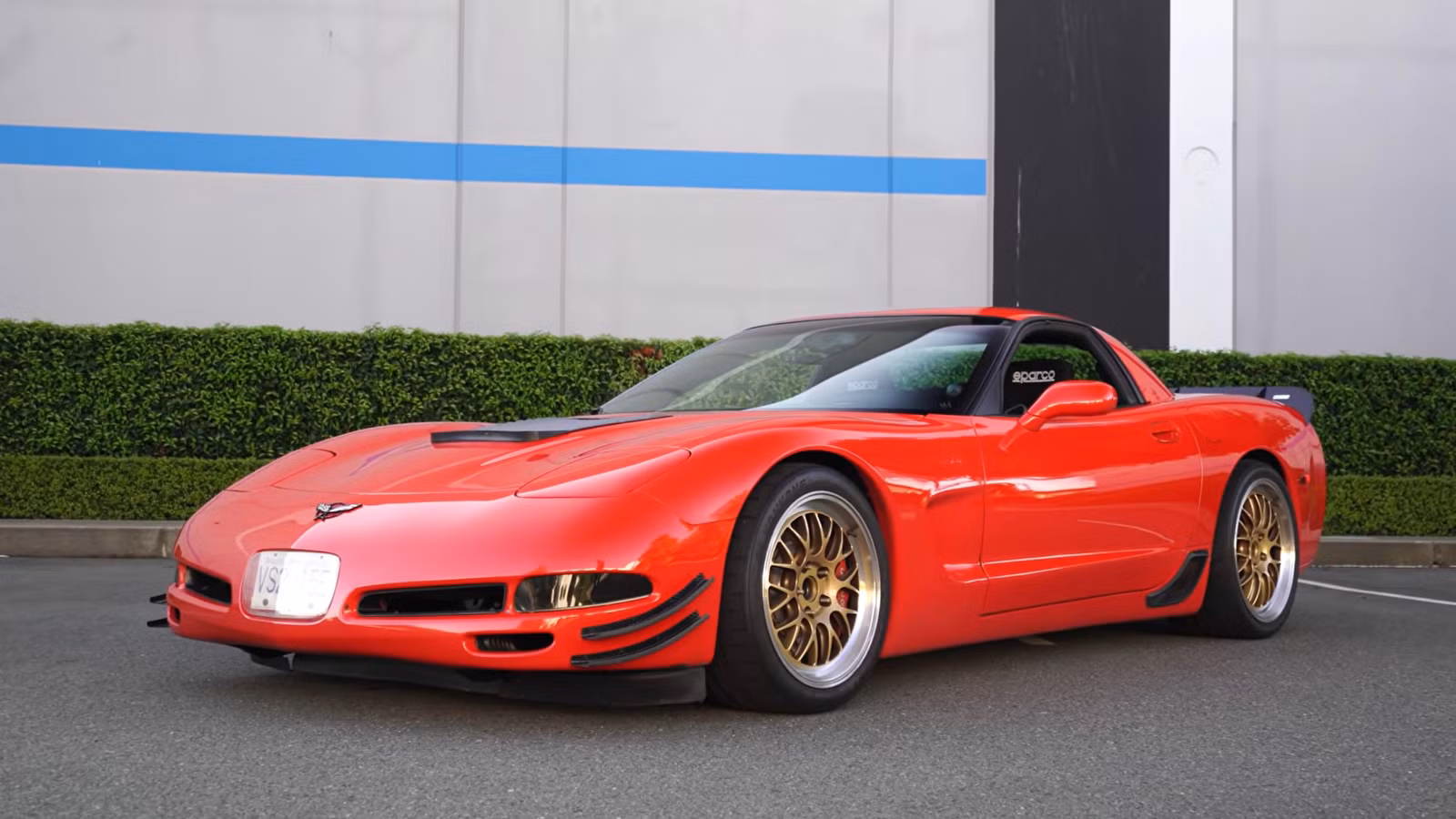

Modified C5 Corvette Z06 Track Build: 476 WHP, Analog Feel
Graham’s C5 Corvette Z06 has been torn apart, rebuilt, and refined through repeated track days, and the result is a case study in why the C5 chassis still matters. Roads Untraveled’s follow-up feature on the build swaps out the factory LS6 for a modified 6.2-liter GM crate engine making 476 horsepower at the wheels and roughly 450 lb-ft of torque, a meaningful jump over the stock 405-hp LS6 rating.
But the headline number isn’t really the point. The build’s real case is made in the suspension and brakes, where the owner has chased mechanical feedback over electronic intervention, turning a 20-plus-year-old chassis into something that still rewards a driver who knows what they’re doing behind the wheel.
What Changed Under The Hood And Underneath The Car
The crate engine swap brought more than peak output. A lightweight flywheel and revised clutch sharpen throttle response and make rev-matching more immediate, though that comes with a tradeoff: less rotational inertia means slightly fussier low-speed manners. A racing gearbox and upgraded K-Tech valvetrain components back up the engine for sustained track abuse, not just a dyno pull.
Chassis work tells the bigger story. QA1 coilovers, Delrin suspension bushings, a bump-steer correction kit, and adjustable camber hardware were all tuned by Overdrive in Richmond, dialing in ride height, alignment, compression, and rebound as a coherent system rather than a parts list. Six-piston front and four-piston rear brakes replace the factory clamps, giving the car stronger stopping power and a pedal that can be modulated deep into a corner.
Why This Build Is A Counterpoint To The C8
Chevrolet‘s current mid-engine Corvette leans on electronics to manage grip and body control, and the C8 Z06’s naturally aspirated LT6 gets plenty of attention for its own engineering. But Graham’s C5 takes the opposite approach entirely. Steering inputs translate directly, tire grip comes through the wheel instead of a dash readout, and the chassis punishes sloppy inputs rather than masking them.
That directness isn’t free. The aggressive alignment that makes the car so sharp on a track surface also makes it considerably less forgiving on rough public roads, where sudden bumps can upset the suspension’s loaded state. It’s a car built to reward concentration, not forgive distraction.
A Working Track Car, Not A Trailer Queen
What separates this build from a typical resto-mod is the iteration. Graham has cycled through multiple clutch configurations and cooling-system revisions, each one addressing a weakness that only showed up after real track mileage. That’s a meaningfully different mission than preserving a low-mile example for a show field.
With C6 and C7 ZR1 values climbing as collector pieces, and C7 Z06 prices recently softening at auction, a well-sorted C5 still offers a cheaper entry point into serious track capability. This build is proof that a front-engine, rear-drive chassis with two-plus decades on it can still be developed into something that out-engages a modern Corvette, even if it can’t out-spec one.
