1969 Hurst SS/AMX: AMC’s Forgotten Factory Drag Car
When asked to name the greatest factory drag cars of the muscle car golden era, most gearheads think of something built by the Big Three: Hemi Mopars, COPO Chevys, and Ford’s nastiest competition machines. American Motors Corporation (AMC) rarely entered that conversation, as it had built its reputation around affordable, practical cars, not quarter-mile warfare. But as the Big Three focused on beating one another, the Kenosha independent saw an opportunity to rewrite its own image.
Teaming up with Hurst Performance, it created a stripped-down factory drag weapon built specifically for NHRA Super Stock competition. Only 52 were produced, and they were never intended for street duty. Packing a severely underrated engine that actually pushed past 500 horsepower, this forgotten brawler routinely humiliated the most revered drag cars of its era, yet somehow it remained one of the muscle era’s most overlooked cars.
AMC Built Its Reputation On Affordable Cars, Not Quarter-Mile Times
Born from the 1954 merger of Nash-Kelvinator and Hudson, AMC quickly became the most successful of America’s independent automakers by simply staying in its lane. While GM, Ford, and Chrysler chased bigger bodies, bigger V8s, and bigger ambitions, AMC took the opposite route, focusing on economical and practical machines built for buyers who wanted dependable transportation and low operating costs, not a stoplight showdown.
By sidestepping the territory dominated by the Big Three, AMC found a niche that proved surprisingly lucrative. By 1963, the company was moving roughly 464,000 vehicles a year, cementing its position as America’s leading independent automaker. But as the 1960s horsepower wars gathered steam, that comfortable formula suddenly looked vulnerable.
1960s Horsepower Wars Forced AMC’s Hand
When the 1960s arrived, “sensible” cars suddenly seemed about as exciting as yesterday’s news. Drag racing was becoming a cultural phenomenon, performance had become a potent sales weapon, and young Baby Boomers wanted cars that could light up the quarter-mile. The Detroit Three happily fed the frenzy, each trying to top the other with more power and more attitude.
AMC resisted the horsepower race for much of the decade, but mounting financial trouble eventually made that strategy impossible. The company lost a staggering $75 million in 1967, prompting a management shake-up that put Roy D. Chapin in charge. AMC then made an aggressive push into performance, launching the Javelin as a 1968 pony car before unveiling the AMX that same year as its new performance flagship.
The AMX Gave AMC A Performance Identity, But It Wasn’t Enough
With the AMX, AMC finally had a halo car capable of dragging curious buyers into its showrooms. It was a clear shot at Chevrolet’s Corvette, but AMC’s answer looked nothing like a traditional sports car. The two-seat AMX was essentially a Javelin chopped down to a 97-inch wheelbase, giving it a short, aggressive stance and a far more compact footprint than most muscle cars. Under the hood, the available 390 V8 delivered 315 horsepower and 425 lb-ft of torque, giving the AMX enough grunt to make base Corvettes think twice at a traffic light, all while costing about $1,000 less.
Finally, AMC had a genuine performance identity. But the company knew winning hearts in showrooms wasn’t enough. To make the newfound performance credentials stick, AMC had to prove its muscle where Detroit’s fiercest machines settled their differences at full throttle: the NHRA drag strip. In 1969, AMC joined forces with Hurst Performance and transformed the AMX into a purpose-built drag weapon designed to take down the muscle car establishment.
1969 Hurst SS/AMX: AMC’s All-American Drag Weapon That No One Remembers
If you haven’t pieced it together yet, and that’s understandable considering how obscure this car became, the machine we’ve been building toward is the 1969 Hurst SS/AMX. This wasn’t a showroom special with a few performance parts bolted on; AMC built it as a limited-run NHRA Super Stock contender.
To turn its AMX into a purpose-built drag racer, AMC teamed with Hurst Performance, a major player in America’s booming hot-rodding scene at the time. It also recruited accomplished drag racer Shirley “Drag-On Lady” Shahan, who had already made history as the first woman to win an NHRA national event in 1966, and her husband, H.L. Shahan, an accomplished engine builder. AMC selected just 52 390-powered AMXs, all equipped with four-speed manuals, and sent them from Kenosha to Hurst’s Michigan operation for transformation. The cars arrived as Frost White machines, ready to be turned into something far more sinister.
Hurst Transformed The AMX Into A 500-Hp Factory Drag Monster

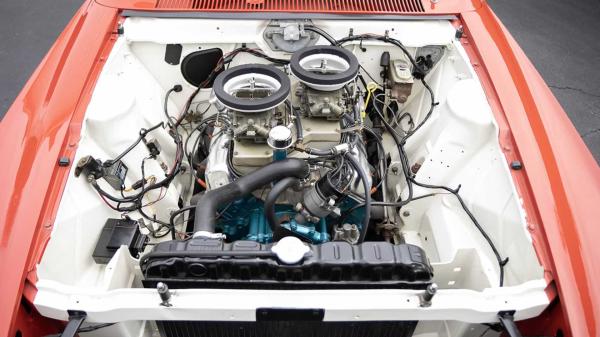

Fresh off its 1968 partnership with Chrysler that produced the fearsome LO23 Hemi Dart, Hurst Performance already knew how to turn lightweight pony cars into drag-strip predators. The AMX was next. The team stripped the car down to an NHRA-accepted 3,050 pounds and began building its 390-cubic-inch V8 into something far nastier than the regular street car. The engine received high-compression JE pistons that raised the compression ratio from 10.2:1 to 12.3:1, ported heads, an Edelbrock eight-barrel intake, and twin Holley 650-cfm carburetors, among other upgrades.
AMC conservatively listed the engine at 340 hp to try to slip into the easier SS/G class, but NHRA wasn’t convinced and initially factored it at 405 hp before later raising that figure to 420 hp. But even those numbers missed the engine’s real potential. Development dyno runs eventually produced 516 hp, while Hurst reportedly estimated as much as 525 hp with its own cylinder heads. The supposedly sensible AMC had become a serious Super Stock weapon.
The Transformation Went Far Beyond The Engine Bay
The engine may have been the headline act, but the SS/AMX received a full drag-racing makeover underneath the skin. For starters, the AMX went on a crash diet to hit the NHRA-friendly 3,050 pounds, shedding body sealer, insulation, and other unnecessary equipment. The chassis was just as radical, with a Hurst Super Stock remote shifter, heavy-duty competition clutch, and the front anti-roll bar deleted to maximize weight transfer.

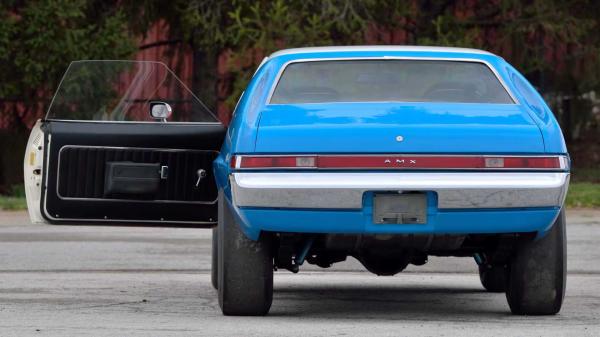

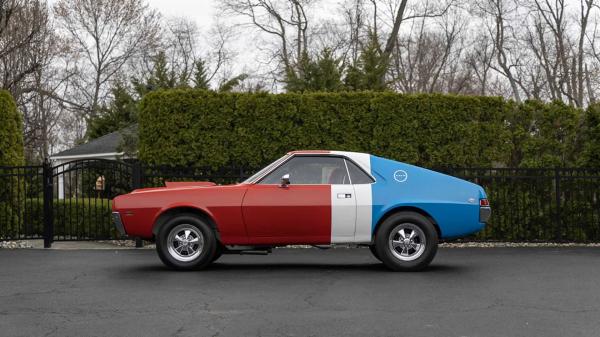

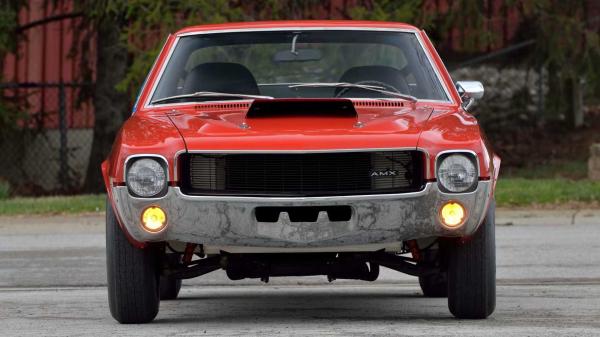

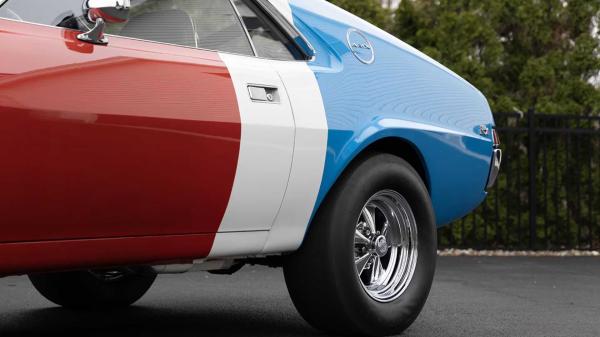

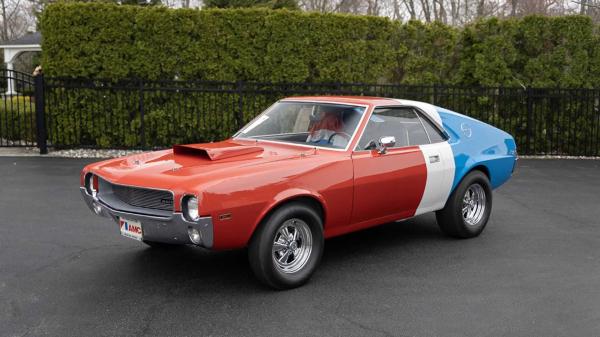

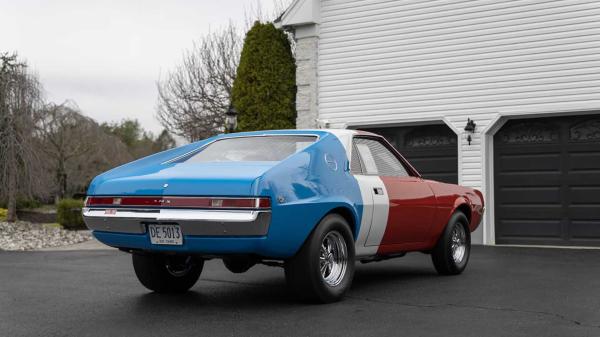

Out back, a brutal 4.44:1 Twin-Grip axle helped turn torque into traction, while enlarged rear wheel wells made room for wider slicks. Up front, a functional ram-air hood scoop forced cool air toward the dual carburetors, and the battery was relocated to the trunk. The final touch was visual: buyers could choose the wild red-white-and-blue scheme, though some were left in Frost White.
Fun Fact: The S/S AMX carried a staggering $5,994 price tag compared with roughly $3,500 for a similarly equipped street AMX. That hefty premium meant some sat on dealer lots for months.
The SS/AMX Backed Up The Hype On The Drag Strip
Once NHRA began refactoring the SS/AMX into tougher territory, AMC’s little bruiser found itself surrounded by Detroit’s best: COPO Chevys, Hemi Mopars, and Cobra Jet Fords. Yet it wasn’t intimidated. East Coast racer Fred Dellis proved that early, ripping off an 11.08-second pass at 127.11 mph in 1969 to set an AHRA record. Shirley Shahan was even more spectacular, taking her Drag-On Lady AMX to a class win at the 1970 NHRA Winternationals while setting class ET and speed records during the season.
What made the SS/AMX so spectacular was its recipe: a 390 V8, a radically lightened body, and a tiny 97-inch wheelbase. While Detroit leaned on cubic inches, AMC weaponized power-to-weight and weight transfer. The result was spectacular launches, violent wheelies, and performance that made AMC impossible to ignore.
Why AMC’s Super Stock Hero Never Became A Muscle Car Icon
By now, it’s clear the 1969 Hurst SS/AMX was something special. So why isn’t it remembered alongside the era’s most celebrated drag cars? The biggest problem was the badge. No matter how brutally fast it was, this was still an AMC, a brand better known for practical transportation than tire-smoking performance. Ford and Chrysler could pour enormous marketing budgets into icons like the Boss Mustang and Hemi ‘Cuda, while AMC’s tiny racing program had far less visibility.
Its Super Stock program was also incredibly small. Just 52 were built, and they were intended for competition rather than everyday street use. That made it nearly impossible to build the same grassroots reputation as showroom muscle cars. The timing also couldn’t have been tougher. By the time the SS/AMX arrived, rising insurance costs and increasingly stringent emissions regulations were already beginning to squeeze the muscle-car boom, leaving AMC’s wildest drag weapon stranded at the end of an era.
Once Overlooked, The SS/AMX Is Now Worth Serious Money
The SS/AMX spent decades as the forgotten oddball of the muscle car era, overshadowed by the familiar names that dominated magazine covers and high-end auction blocks. AMC’s economy-car reputation didn’t exactly help, but collectors are finally looking past the badge. One exceptionally well-documented example sold for $181,500 at Mecum Indy in 2022 before returning to the same auction four years later, where it brought $280,500.
AMC fans, of course, are not surprised. They always knew the 10-second giant-killer was the real deal. It may have lacked a Bowtie or a Blue Oval, but it was a brutally focused piece of American muscle that forced the Big Three and muscle car enthusiasts to take AMC seriously.
Sources: NHRA, Mac’s Motor City Garage, Street Muscle Magazine, Hemmings, Mecum Auctions
